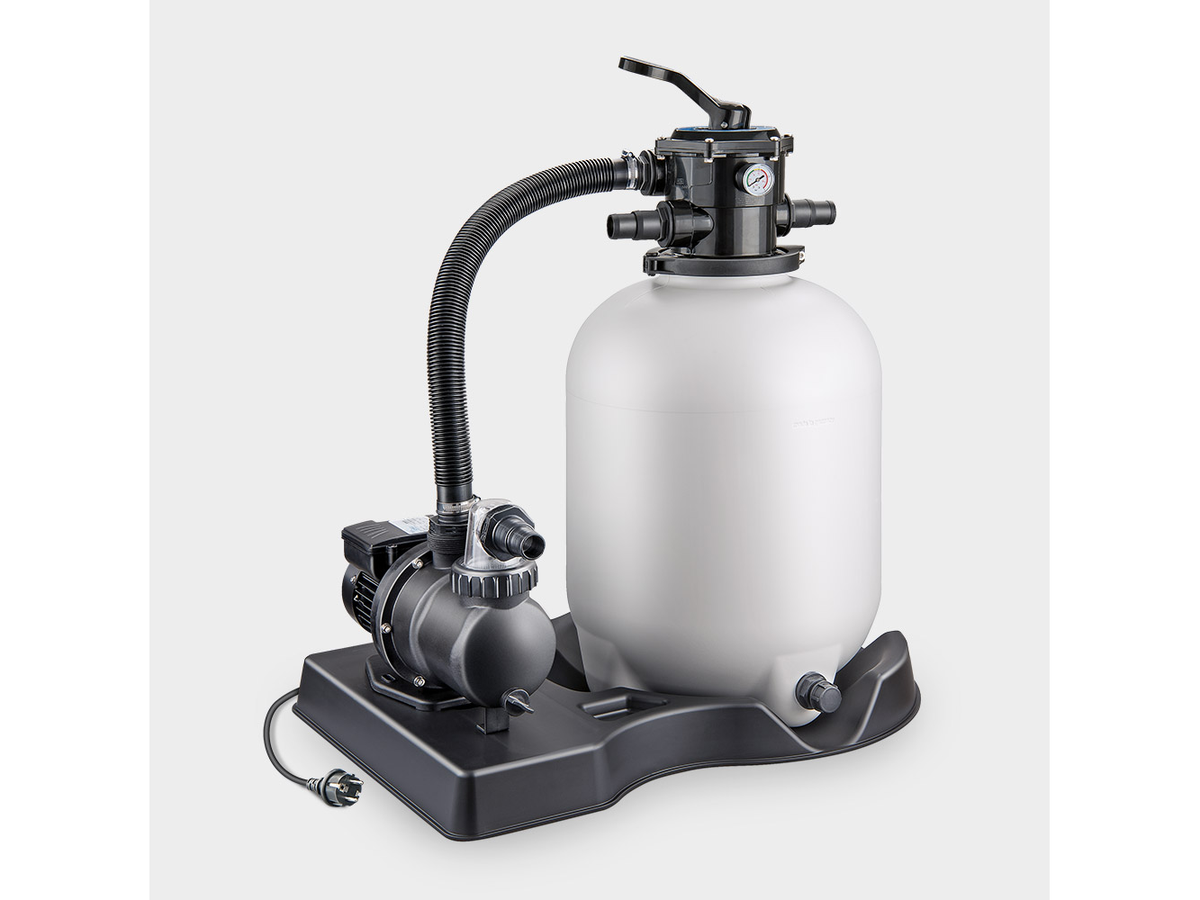

POOLSANA PLUS 400/Pump 100 Sand Filter System – 8 m³/h, for Pools up to 40 m³
€314.48 incl. VAT
Ready-made sand filter system for pools up to about 40 m³: ∅ 400 mm filter tank and Pump 100 self-priming pump.
- Flow about 8 m³/h at 550 W
- 7-way valve with pressure gauge
- Pump with TÜV and GS
- Base and connecting hose included in the set
POOLSANA PLUS 400/Pump 100 Sand Filter System – 8 m³/h, for Pools up to 40 m³
The Poolsana PLUS 400/Pump 100 sand filter system is a ready-made kit for pools up to about 40 m³. It combines a ∅ 400 mm filter tank with a Pump 100 self-priming pump. The pump delivers about 8 m³/h at 550 W.
| Manufacturer | Poolsana |
|---|---|
| Series | PLUS |
| Filter tank diameter | 400 mm |
| Pump | Poolsana Pump 100 |
| Flow rate | about 8 m³/h |
| Pump power | 550 W / 230 V |
| Recommended pool volume | up to 40 m³ |
| Valve | 7-way with sight glass and pressure gauge |
| Max. tank pressure | 1.5 bar |
Filter tank with sturdy walls

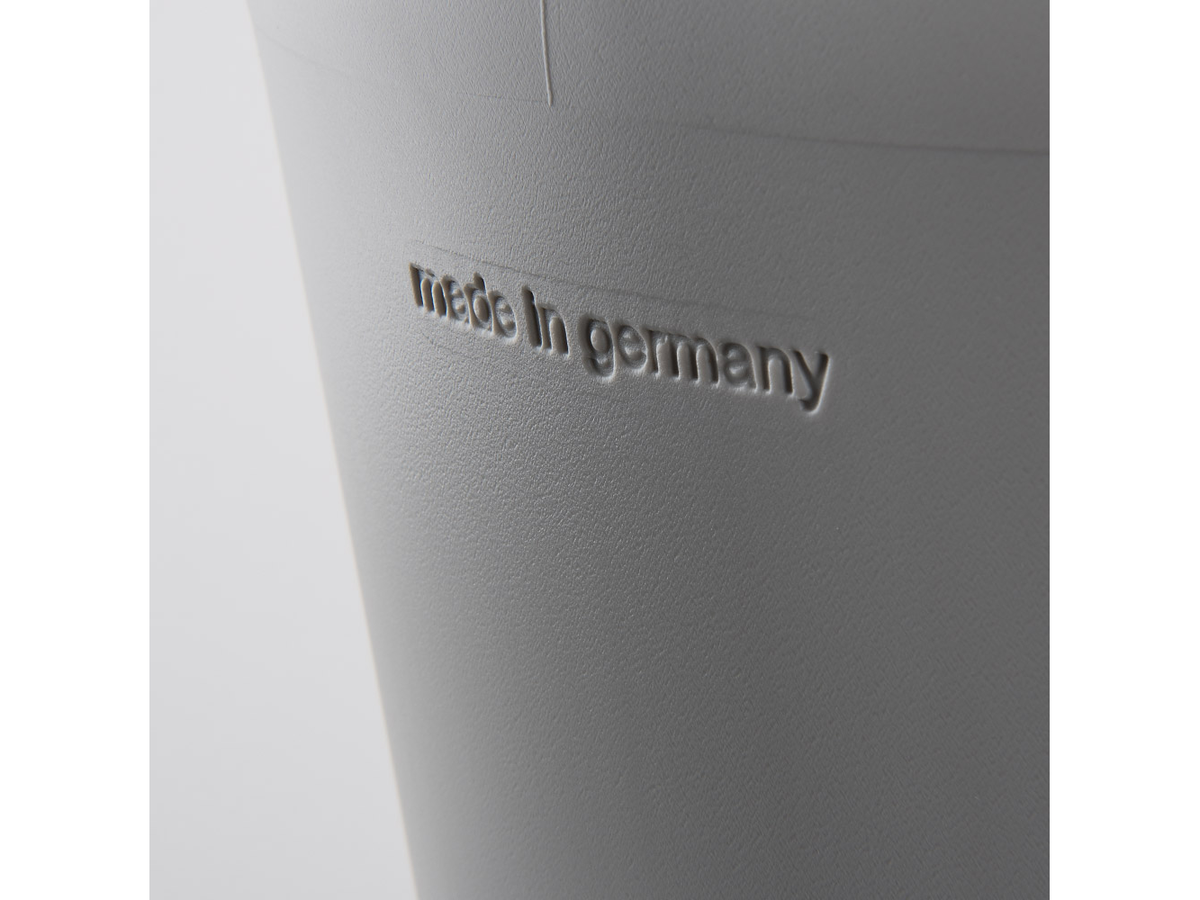

The tank is made of polypropylene and withstands pressure up to 1.5 bar. The workmanship is high quality, and the tank carries an embossed Made in Germany inscription. The system is convenient for above-ground pools.
What the PLUS 400/Pump 100 system includes
- ∅ 400 mm filter tank with standpipe and drainage part;

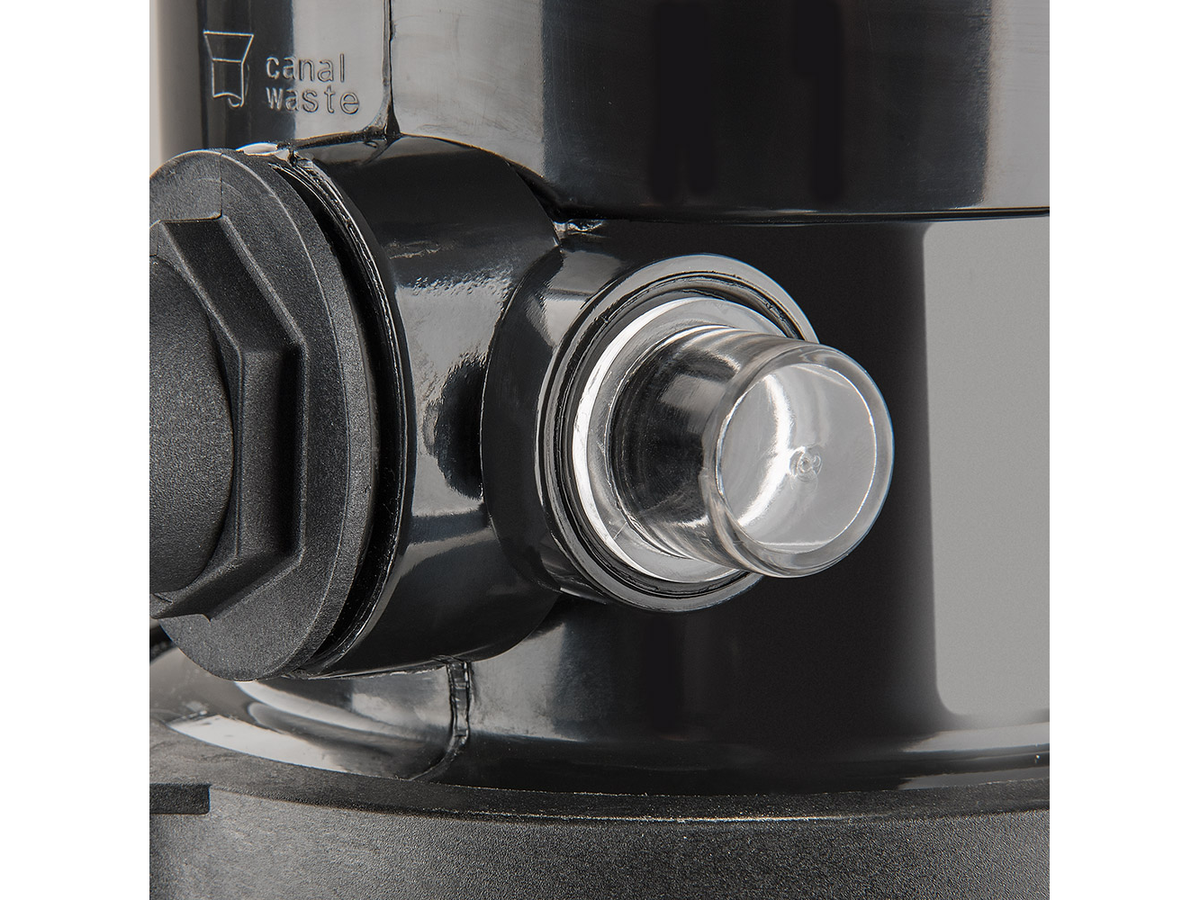

- 7-way valve with sight glass;

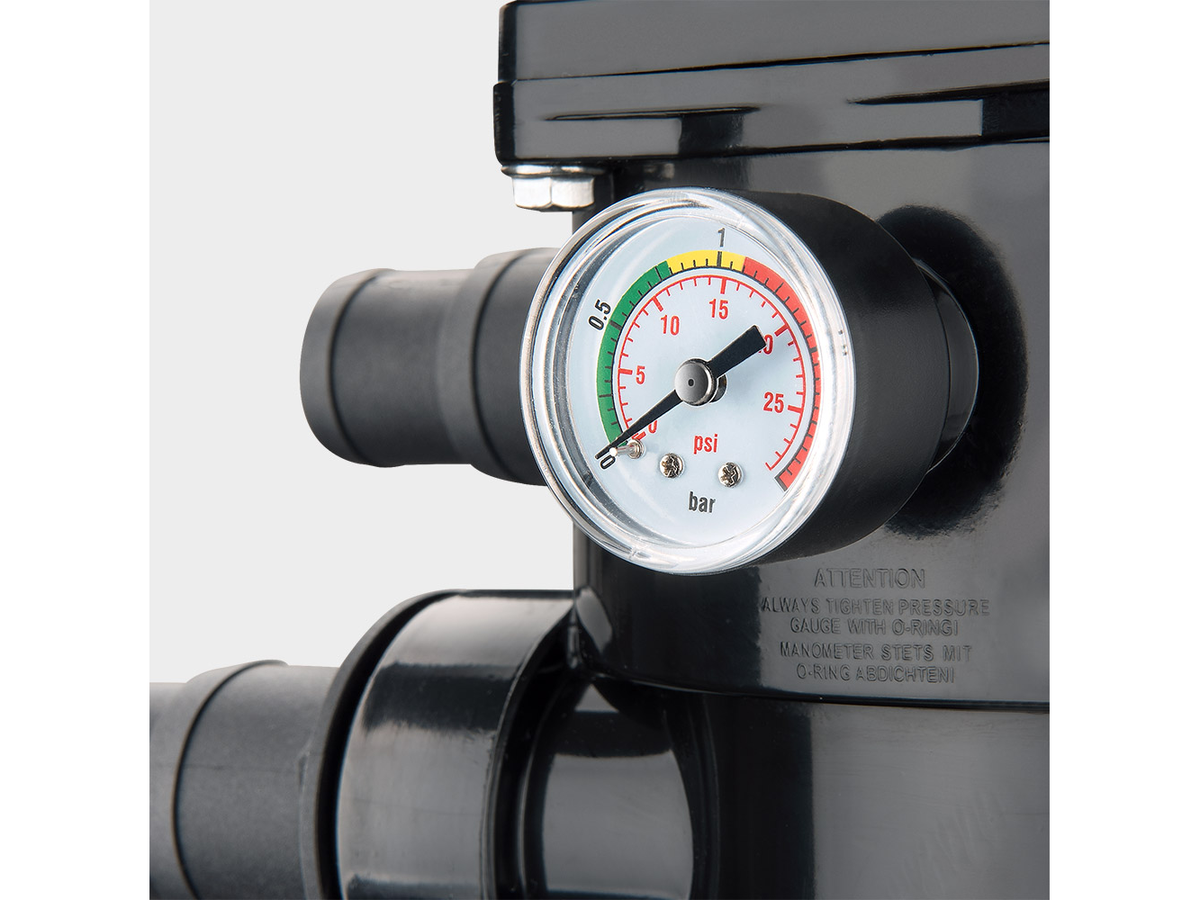

- pressure gauge;
- hose adapters ∅ 32/38 mm;
- connecting hose between the pump and the valve;
- PTFE tape;
- sturdy, compact base;
- Pump 100 with pre-filter and cable with plug.
The filter medium is not included. You need about 50 kg of sand (grain size 0.4–0.8 mm), about 40 kg of filter glass or about 700 g of Fibalon (3D or rope).

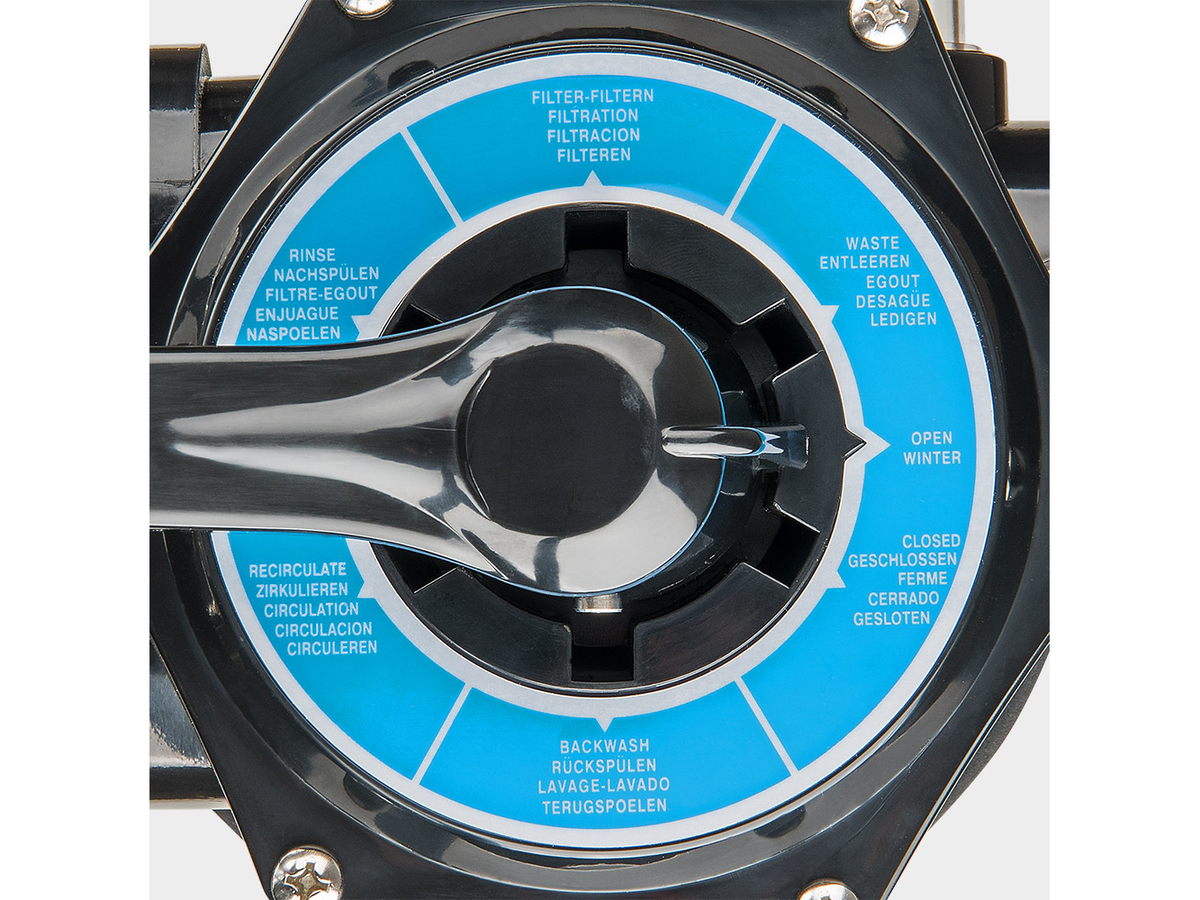

Seven-way valve
The seven-way valve has the following positions: filter (normal operation and floor cleaning), backwash, rinse after backwashing, drain, recirculation without filtering, closed and winter position. The valve and pump outlets have a 1 1/2″ internal thread.
Poolsana Pump 100 pump
Poolsana Pump 100 is a compact and reliable self-priming pump. It is TÜV tested and carries the GS mark. It has a pre-filter, a drain port and a factory-fitted cable with plug.
The pump may stand above the water level, but no higher than 50 cm. Before the first start, fill the pre-filter with water. It is not suitable for pools with salt electrolysis.
- Max. head: 10 m
- Max. flow: 158 l/min
- Supply: 230 V, 50 Hz
- Power consumption: 550 W
- Speed: 2,900 rpm
- Protection: IP X5
- Noise: 60 dB at 1 m
- Cable: 1.5 m
- Max. water temperature: 35 °C
Connection and installation
The system is prepared for ∅ 32/38 mm hose. For rigid ∅ 50 mm pipes, separate adapters are needed. The water in the filter must not exceed 40 °C. The system is assembled on site.
Questions about choosing or installing?
Write to us or give us a call – we will help you choose the right model for your pool.
| Manufacturer | Poolsana |
|---|---|
| Series | PLUS |
| Filter tank diameter | 400 mm |
| Pump | Poolsana Pump 100 |
| Flow rate | about 8 m³/h |
| Pump power | 550 W / 230 V |
| Recommended pool volume | up to 40 m³ |
| Valve | 7-way with sight glass and pressure gauge |
| Max. tank pressure | 1.5 bar |
