Automatic pH and ORP control system – Atlas Pool
Price range: €3120.00 through €5480.00 incl. VAT
Automatic pH and ORP control system on a ready-made panel – measures and doses chemicals without manual intervention and effort. Made in Turkey.
- Poolsaver Tetra controller
- two dosing pumps
- pH and ORP electrodes
- four models – up to 2000 m³
Automatic pH and ORP control system – Atlas Pool
The Atlas Pool automatic pH and ORP control system keeps the pool water clean without constant manual measuring. The system is assembled on a ready-made panel and includes a Poolsaver Tetra controller, two dosing pumps and pH and ORP electrodes. It is made in Turkey.
| Manufacturer | Atlas Pool |
|---|---|
| Measured values | pH and ORP |
| Controller | Poolsaver Tetra |
| Dosing pumps | 2 pcs (depending on the model) |
| Installation | ready-made wall panel |
pH control system – how it works
The electrodes continuously measure the acidity (pH) and the oxidation-reduction potential (ORP) of the water. The controller compares the readings with the set values. When they deviate, it switches on the corresponding dosing pump. This way chemicals are added exactly when needed.
The system is suitable for private and public pools. There are four models, which differ in the pumps and in the volume of water they are designed for.
Models and pumps
- ANT02-750E – 2 LARA A pumps of 10 l/h each at 5 bar, 60×90 cm panel, up to 1000 m³ according to the catalogue.
- ANT02-1500E – 2 NOVA A pumps of 25 l/h each at 5 bar, 60×90 cm panel, up to 2000 m³ according to the catalogue.
- ANT03-E – 2 nano dosing pumps of 5 l/h each at 5 bar, 45×60 cm panel, up to 500 m³ according to the catalogue.
- ANT05-E – 2 Optima A pumps of 5 l/h each at 10 bar, 50×75 cm panel, up to 500 m³ according to the catalogue.
What does the kit include?

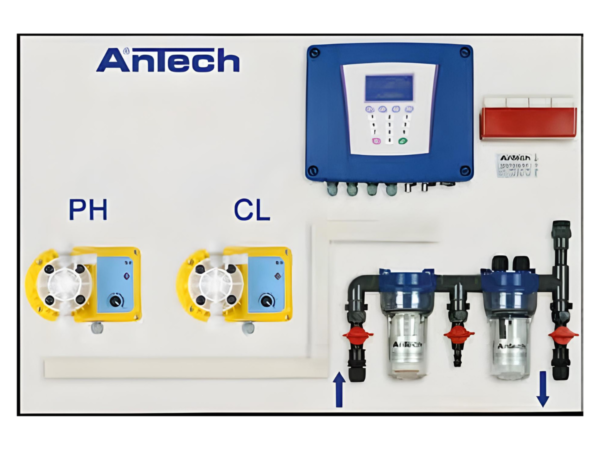

All elements are mounted on the panel by the manufacturer. This shortens installation and reduces the risk of connection errors.
- Poolsaver Tetra controller;
- pH electrode and ORP electrode;
- flow-through electrode cell (ANT03-E and ANT05-E – two-inlet electrode chamber);
- calibration solutions and a holder for them;
- two dosing pumps according to the chosen model;
- ANT02 models – also a filter for mechanical impurities, 6×8 mm connections and a sampling tap;
- ANT05-E model – inputs for two level sensors and one flow sensor.
For models with control of the chemical level in the container, two level sensor sets are added. They are not included and are ordered additionally.
Installation and safety
The panel is fixed to a wall in the technical room and connected to the pool's circulation line. Installation and electrical connection must be carried out by a qualified specialist. Work with chemicals (pH-, chlorine) is done strictly following the instructions of the product's manufacturer. Store the containers in a safe place and do not mix different chemicals.
Choose the model according to the pool volume and the required amount of dosing. If you are unsure, write to us and we will help you choose.
Not sure this is your part?
Send us the model of the unit and a photo of the old part. We will check compatibility before you order.
| Weight | N/A |
|---|---|
| Manufacturer | Atlas Pool |
| Measured values | pH and ORP |
| Controller | Poolsaver Tetra |
| Dosing pumps | 2 pcs (depending on the model) |
| Installation | ready-made wall panel |
| Atlas Pool catalogue no. | ANT02-750E, ANT02-1500E, ANT03-E, ANT05-E |
| Model | ANT02-750E (2× LARA A), ANT02-1500E (2× NOVA A), ANT03-E (2× nano pump), ANT05-E (2× Optima A) |
