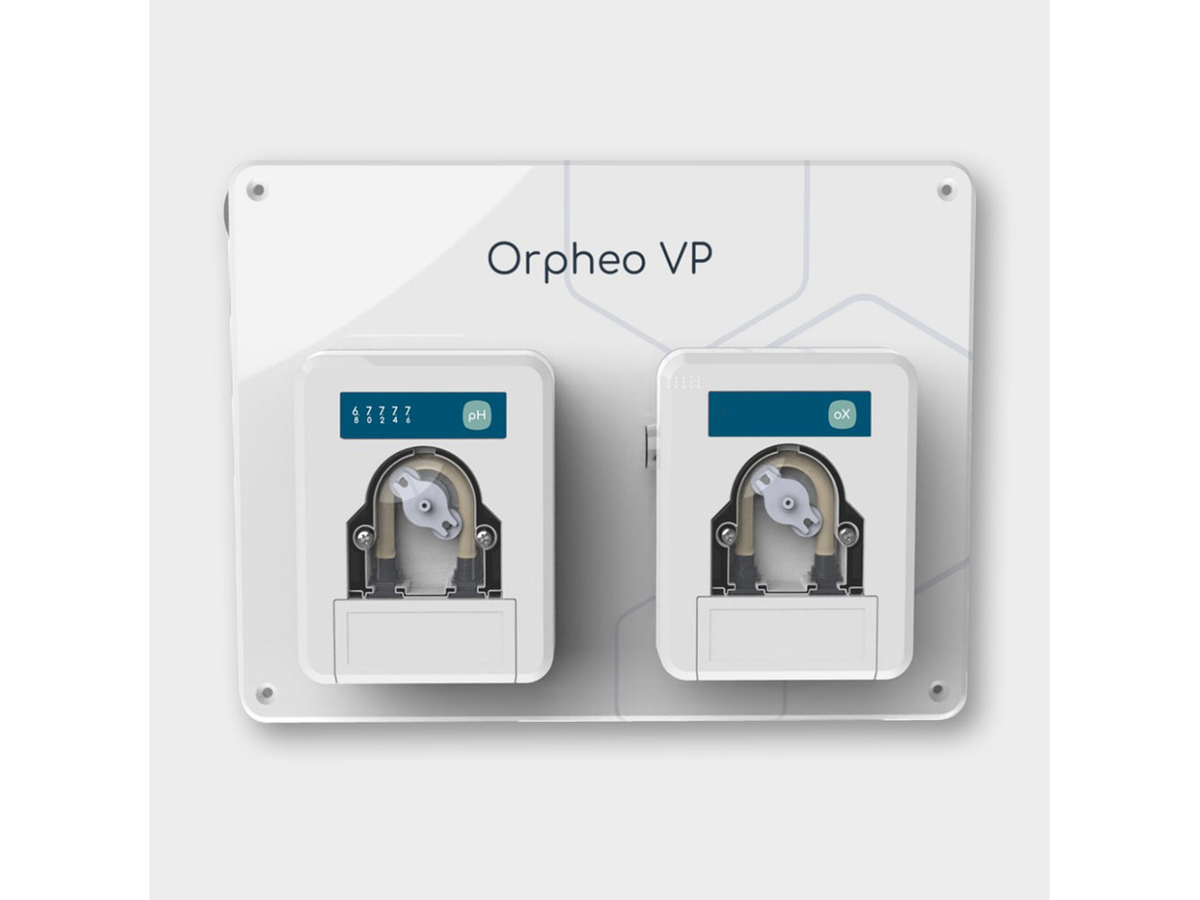

Orpheo VP automatic Wi-Fi pH and chlorine dosing system
€1140.00 incl. VAT
Fully connected pH and chlorine dosing system with a measuring chamber, flow switch and control from the Vigipool app via Bluetooth or home network.
- Multicolour backlighting shows the state of the pumps
- Built-in flow switch (Flow Switch)
- Measuring chamber with Ø 50 mm solvent-weld sockets
Orpheo VP automatic Wi-Fi pH and chlorine dosing system
The Orpheo VP dosing system is an automatic, reliable and fully connected water care system. It measures the pH and redox value and doses pH minus, pH plus or chlorine. It is controlled from the pumps or from the free Vigipool app.
| Manufacturer | Poolsana |
|---|---|
| Model | Orpheo VP |
| Measurement | pH and redox (ORP) |
| Control | On the pumps and via the Vigipool app (iOS and Android) |
| Connection | Bluetooth or home network with cloud |
| Flow switch | Built-in (Flow Switch) |
| Measuring chamber | With Ø 50 mm solvent-weld sockets |
| Dosing liquid | pH minus/plus or liquid chlorine (not included) |
How the Orpheo VP dosing system works
The system is connected to the filtration circuit and continuously measures the water values. When the values deviate from the set ones, the pumps automatically start an injection in proportion to the deviation. For safety reasons only the pH correction or chlorine is injected, never both products together. The built-in flow switch ensures the system runs only when water is flowing.
Easy installation and clear indication

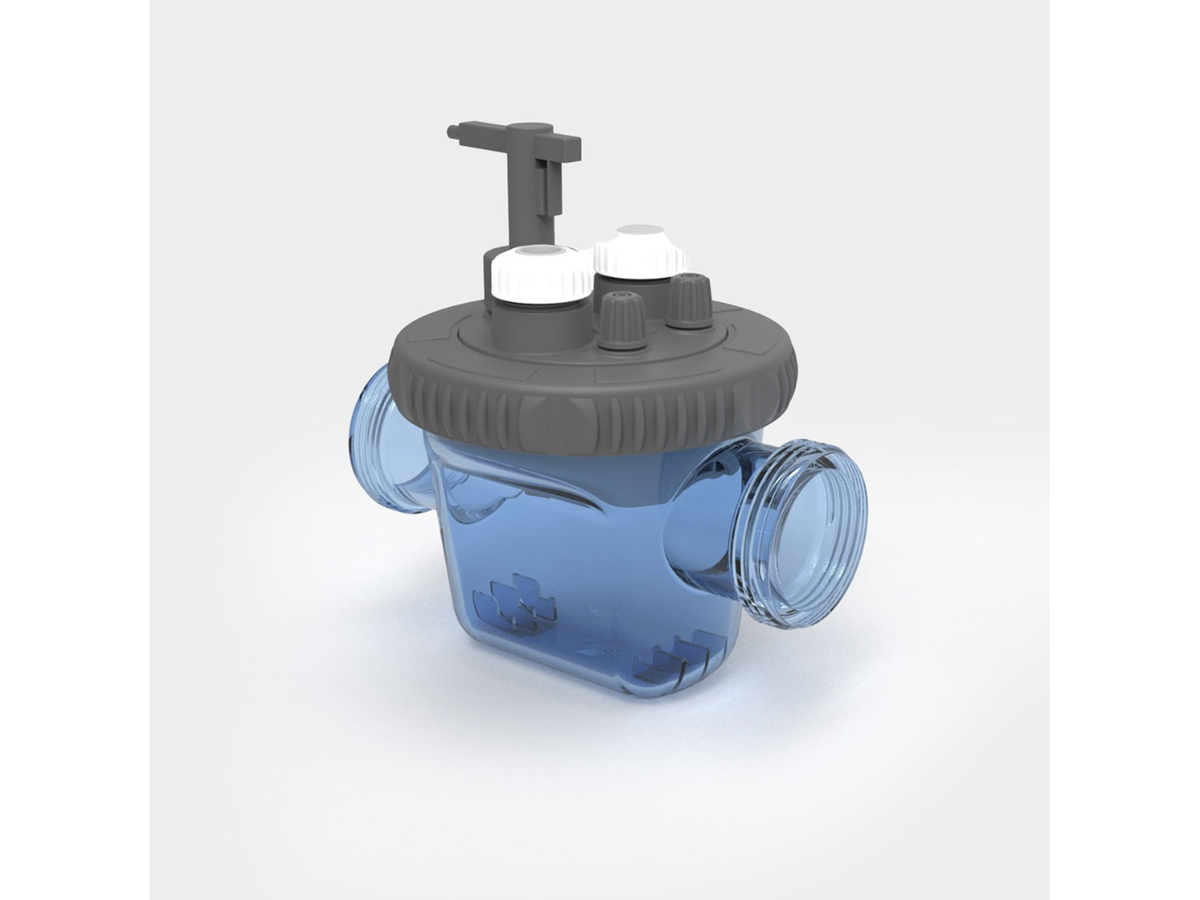

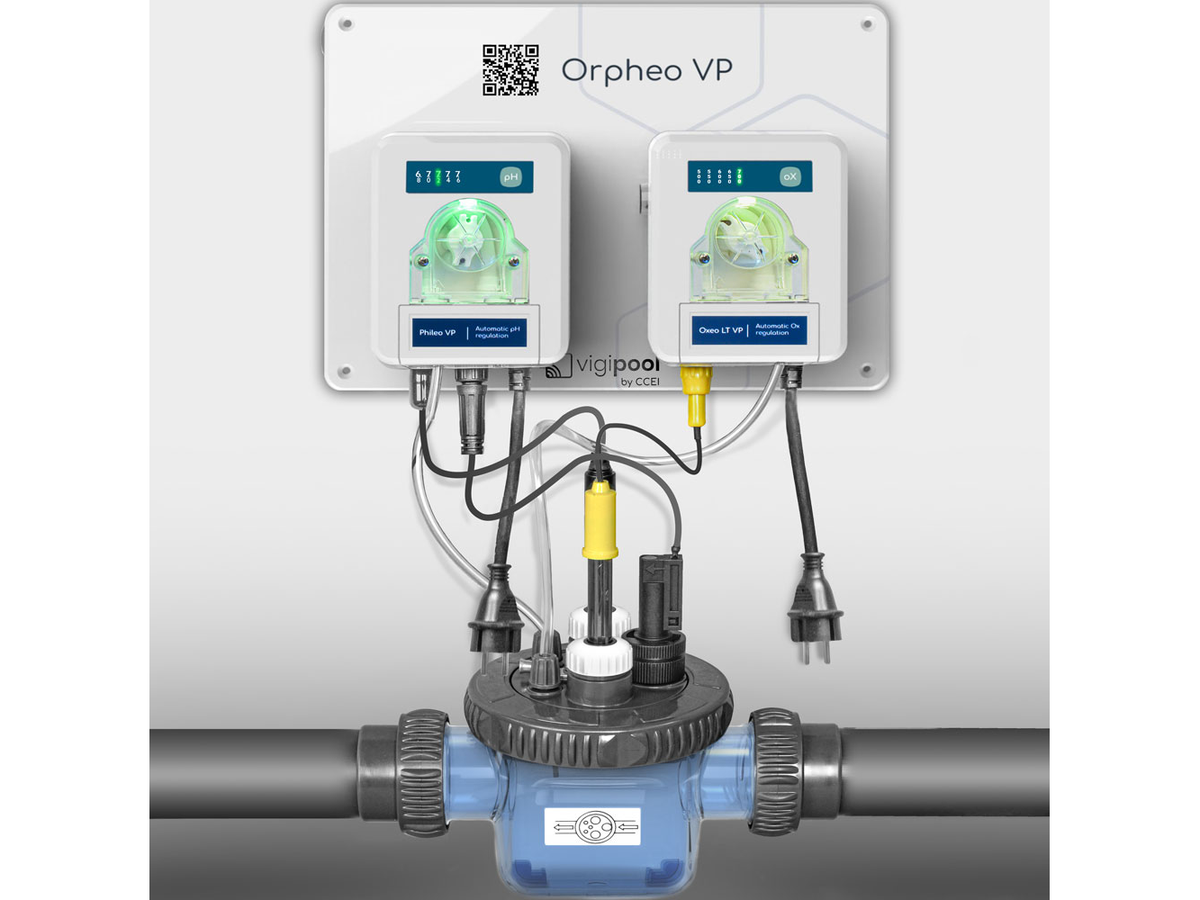

The device is supplied with a power cable and plug. It comes with a compact measuring and injection chamber in which the probes, injectors and flow switch are mounted. This brings all the connections together in one place.
Mounting the probes and injectors takes only a few minutes. On the pool side, the chamber has connections with Ø 50 mm solvent-weld sockets.

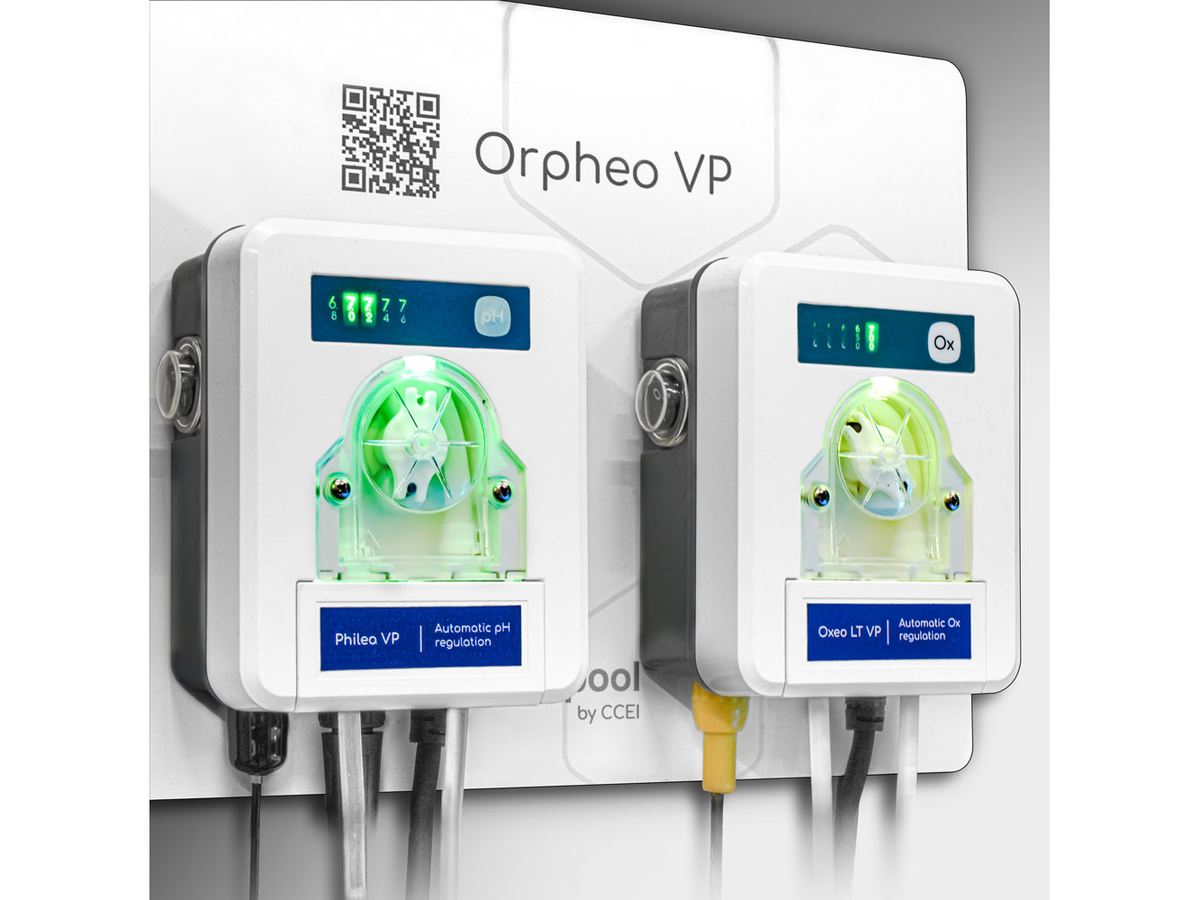

The pumps have multicolour backlighting. Green means everything is fine, orange means the value is close to the set one, and red means it is further away. The backlight flashes during injection.
Each pump also has 5 indicator LEDs for the measured values. The set values are changed directly on the pumps. This lets you see the state of the system at a glance, even from a distance. The measurement history also helps you notice changes over time.

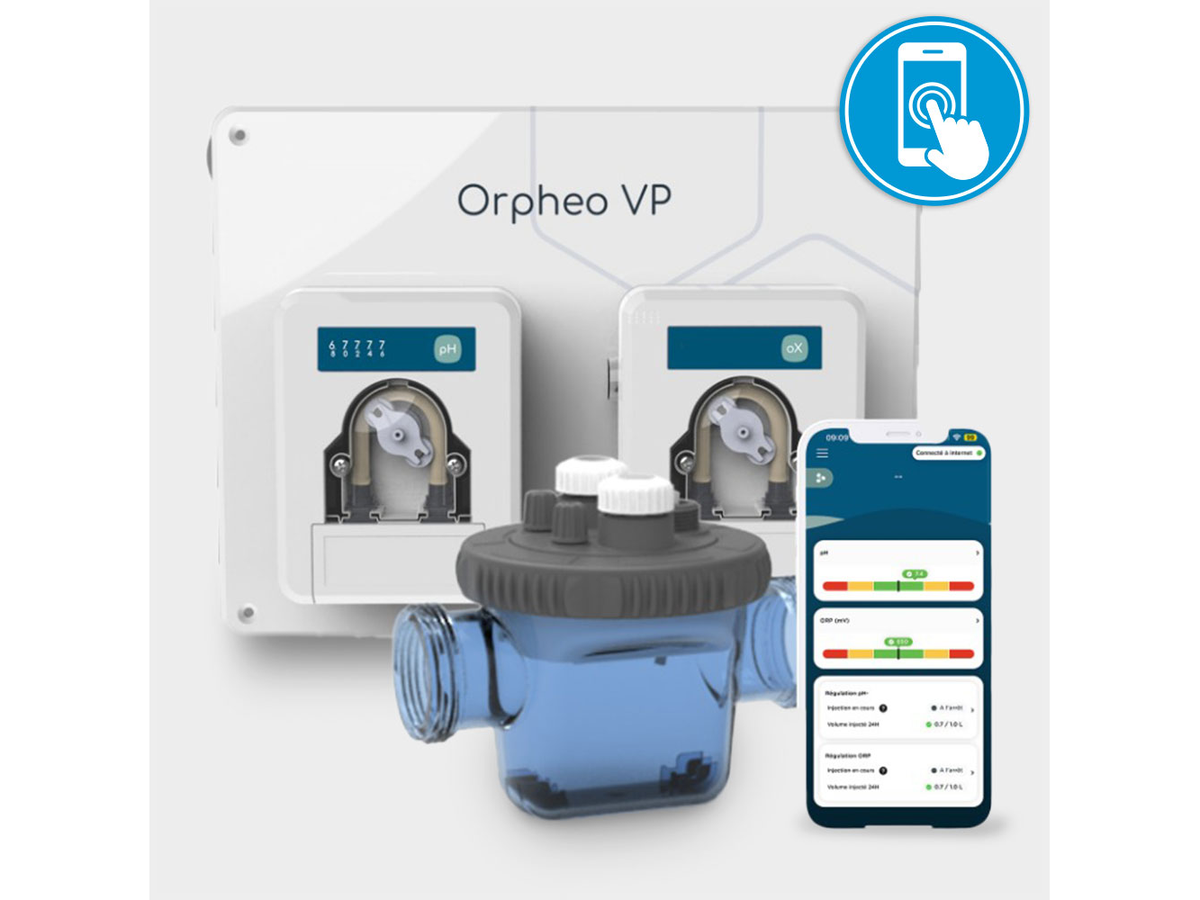

Control from the app
The Vigipool app is free for iOS and Android. The connection is local via Bluetooth or via your home network to a free cloud, so you can monitor the system remotely too.
- pH value and redox value
- Operating state of the pH pump and the chlorine pump
- Maximum injection quantity per day
- Measurement history
What you need to know before installation
Liquid pH minus or pH plus and liquid chlorine are required. The power supply must be protected with a 30 mA residual-current device, and the system is connected after the pool heater. The manufacturer recommends an initial redox value of 700 mV. The manufacturer recommends replacing the peristaltic hoses and the probes at least every 2 years.
Questions about choosing or installing?
Write to us or give us a call – we will help you choose the right model for your pool.
| Manufacturer | Poolsana |
|---|---|
| Model | Orpheo VP |
| Measurement | pH and redox (ORP) |
| Control | On the pumps and via the Vigipool app (iOS and Android) |
| Connection | Bluetooth or home network with cloud |
| Flow switch | Built-in (Flow Switch) |
| Measuring chamber | With Ø 50 mm solvent-weld sockets |
| Dosing liquid | pH minus/plus or liquid chlorine (not included) |
Germany, Nuremberg · Exclusive representativePoolsana – pools and equipment from Germany.
German specialist in swimming pools, saunas and accessories, founded in 2005 in Nuremberg.
in Nuremberg
A swimming pool for every home at a reasonable price
Poolsana was founded in 2005 in Nuremberg by a local pool and sauna construction company with many years of experience in the industry. Its goal is to make it possible for every property owner to afford their own pool or sauna.
Poolsana’s technical department checks the compatibility of pumps, sand filters and other components, and the warehouse of over 3000 m² guarantees fast delivery. At Baseini.NET we are the exclusive representative for Bulgaria.
The components in Poolsana kits are selected and tested to work together – no surprises during installation.
Poolsana products in our shop
The pool you can afford!
See the best options to have the pool of your dreams
Unicredit Bulbank
UniCredit Consumer Financing is part of UniCredit Group – the largest banking group in Eastern Europe.
Why choose UniCredit Consumer Financing?
For additional information:
Call 0700 15 600 at the price of a local call for BTC subscribers or www.ucfin.bg
TBI Bank
TBI Bank provides you with a quick and easy opportunity to purchase the desired swimming pools.
7 important reasons to choose TBI Bank:
Do you have any questions?
We are here to answer and assist. Contact us:
Delivery time
- The product is delivered on pre-order, delivery time up to 20 working days.
- We order it specially for you from the manufacturer.
Price and free shipping
- The online store automatically calculates the price with the selected courier.
- Free delivery on orders over €150 to a Speedy office, for Bulgaria only.
- Below this threshold, delivery is at the customer's expense according to the courier's tariff.
- You can pick up the product in person from the warehouse or office store after prior arrangement.
Full terms and conditions: Delivery terms →
Frequently bought together
UV-C stainless steel pool disinfection unit
UV-C device for disinfecting pool water that significantly reduces the need for chemicals, with a housing made of high-quality V4A stainless steel, compact design with up to 25% smaller dimensions compared to standard devices with the same power, ready to plug in electrically and suitable for pools up to 75 m³, made in the Netherlands.
You may also like…

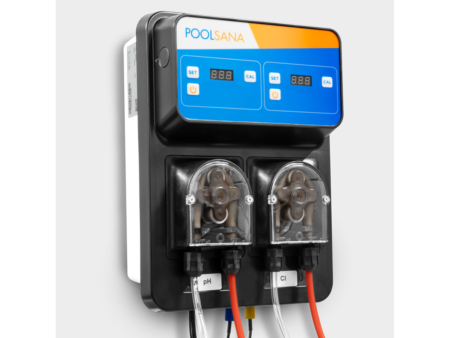

Poolsana Premium Duo automatic pH and chlorine dosing system
