Full inverter heat pump 17 kW / 5.2 m³/h + WiFi
€1800.00 incl. VAT
Extend the bathing season to 7 months and enjoy comfort, fun and sport in pleasantly warm water for most of the year.
- 17 kW – power
- up to 70 m³ – suitable pool volume
- 5.2 m³/h – flow rate
Azuro 17 kW inverter pool heat pumpWarm water for pools up to about 70 m³
The 17 kW inverter pool heat pump with WiFi suits the efficient heating of pools up to about 70 m³. It also adjusts its output by itself according to outdoor conditions. You control it through the Aqua Temp mobile app, and the load decreases when the unit reaches the set temperature.
17 kW inverter pool heat pump – description
The 17 kW Inverter heat pump suits efficient heating of pool water in pools up to about 70 m³. Modern technology also allows constant control and monitoring of the unit's operation and the water temperature. Moreover, you can do this at any time and from anywhere via a mobile app and a built-in WiFi module.
This 17 kW inverter heat pump automatically changes its output according to the outside conditions and the needs of the pool. Therefore, electricity consumption is significantly lower than with standard heat pumps.
Every pool heat pump with automatic evaporator defrosting works more efficiently. The cooling mode also makes it useful throughout the season. Moreover, the digital control panel and quiet operation give peace of mind by the water.
This inverter heat pump has advanced technology that adjusts its power automatically to outdoor conditions and pool needs. When the unit reaches the set temperature, the system reduces the load. This results in significantly lower electricity consumption compared to standard heat pumps.
The unit works by extracting heat from the ambient air through a compression and expansion cycle of a refrigerant. Firstly, a fan draws air through the evaporator, where the heat transfers to the heat-transfer fluid. Then the compressor raises its temperature, and through a heat exchanger the heat passes to the pool water.
Pressure and temperature sensors control the fully automatic process, so the operation is reliable and efficient. The heat pump also features a modern design and quiet operation. Therefore, it suits every type of pool and outdoor space.
17 kW inverter heat pump – benefits
- This will also extend the swimming season to 7 months a year.
They are also easy to install and operate.
They save on electricity bills because they run economically.
It also has a digital control panel with intuitive operation.
Up to 83% of the heat comes free from the ambient air. When you put in 1 kWh, you get up to 5 kWh free from the ambient air. Because of rising electricity prices, pool heat pumps are a really good investment. By comparison, electric direct heaters extract only 1 kW of heat from 1 kW of electricity. The image "Heat pump operating principle" is informative and also illustrates how the unit works. The parameters in it do not refer specifically to the model, but they are only examples. - This will also extend the bathing season to 7 months a year.
- They are also easy to install and operate.
- It saves on electricity bills because of economical operation.
- It also has a digital control panel with intuitive controls.
- Up to 83% of the heat comes free from the ambient air. When you put in 1 kWh, you get up to 5 kWh free from the ambient air. Because of rising electricity prices, pool heat pumps are a really good investment. By comparison, electric direct heaters yield only 1 kW of heat from 1 kW of electricity. The image "Heat pump operating principle" is informative and also illustrates how the unit works. The parameters in it do not refer specifically to the model, but they are only examples.
Main advantages:
- Inverter technology with automatic power regulation
- Possibility of control via WiFi
- Optimal operation according to water and air temperature
- Significantly lower electricity consumption
- Higher efficiency (COP)
- Longer service life
Quiet and comfortable operation

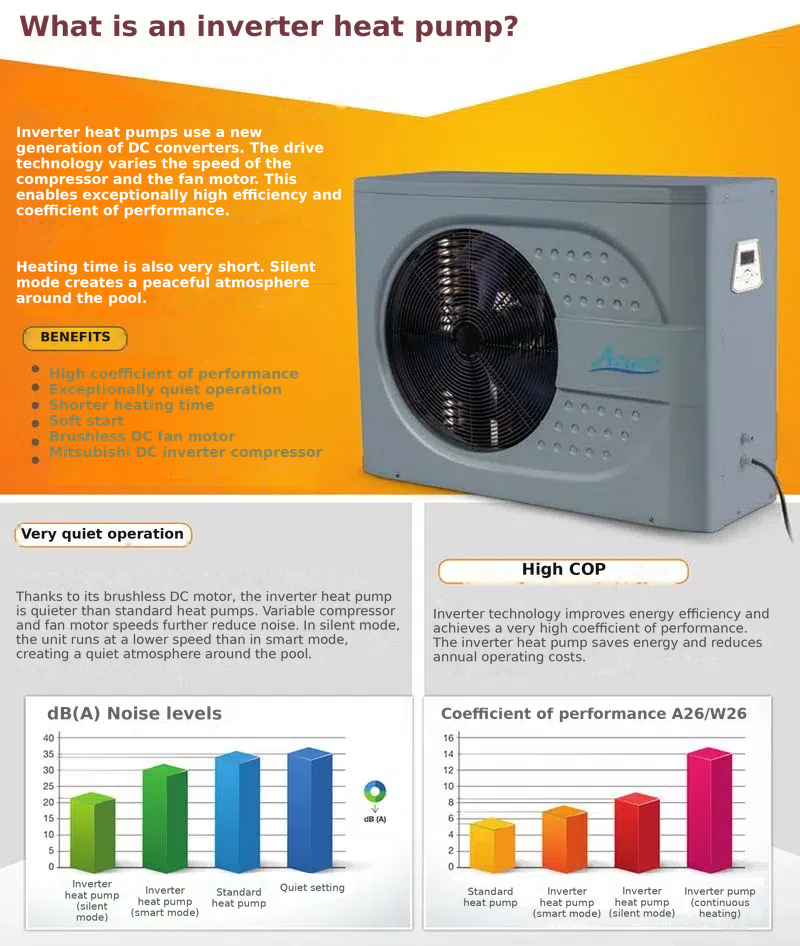

Innovations:
Option to install a Wi-Fi control module for the Aqua Temp mobile app, which is free to download from Google Play and the App Store
Automatic evaporator defrosting increases the efficiency of the pump and also reduces its energy consumption.
ECO mode – economical and ecological. You will appreciate the lower consumption from a financial point of view. Moreover, the economical operation of the appliance saves the planet's energy resources.
Quiet operation is also one of the advantages of inverter pumps. Relaxing around the pool while hearing the sound of the water is a wonderful experience!

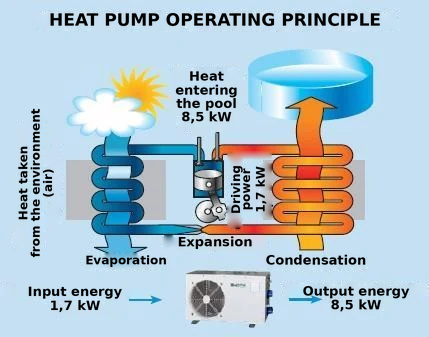

OPERATING PRINCIPLE, USES UP TO 83%
Energy from the environment:
Heat pumps work by using the air temperature (the vapours around the pool). As the energy enters the pump, it expands and condenses, so it multiplies the heat energy several times over. It provides warm water in any weather, regardless of sunshine.
In order to take heat from the air around the pool, the pump compresses and expands the refrigerant. A fan drives the air through an evaporator, where it passes its heat to the refrigerant while it cools down.
Then a compressor carries the heat-transfer fluid, compresses it and heats it in the coils of the heat exchanger. There it also gives up its heat to the pool water. Afterwards, the cooled liquid leaves the heat exchanger and enters the expansion valve. There its pressure drops, and it cools rapidly.
Thus the cooled liquid flows back into the evaporator, where flowing air heats it. Pressure and temperature sensors also monitor the whole process, which runs smoothly. When you select the heat pump mode, you can reverse the direction of circulation and cool the pool water.

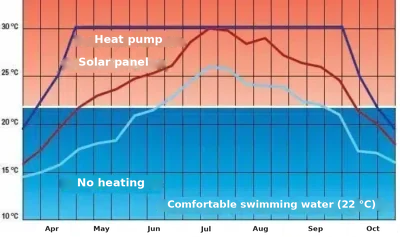

The heat pump achieves its highest efficiency at air temperatures between 15 and 26°C. However, unlike ordinary heat pumps, it can also work at much lower temperatures.
Video
Photos
Why choose a 17 kW inverter heat pump
Lower power consumption, WiFi control and quiet operation in one unit.
Automatic power regulation
Inverter technology adjusts the output to the water and air temperature in order to run optimally.
WiFi control
The Aqua Temp mobile app also lets you monitor the water temperature at any time and from anywhere.
Warming and cooling
The cooling mode, as well as automatic evaporator defrosting, increases efficiency and reduces consumption.
Quiet operation
Quiet operation is among the advantages of inverter pumps, so by the pool you hear only the sound of the water.
Frequently asked questions – 17 kW inverter heat pump
What pool volume is the heat pump suitable for?
The 17 kW inverter heat pump suits pools up to about 70 m³, since it heats them efficiently.
How do you control the unit?
You can use a digital control panel. With a WiFi module, you can also use the Aqua Temp mobile app, which is free to download from Google Play and the App Store.
Can it cool the water?
Yes. When you select the mode, you can reverse the direction of circulation and cool the pool water.
At what temperatures does it work best?
The highest efficiency comes at air temperatures between 15 and 26 °C. However, unlike ordinary heat pumps, the unit can also work at much lower temperatures.
How much energy do you get for free?
Up to 83% of the heat comes from the surrounding air. When you put in 1 kWh of energy, you get up to 5 kWh. In contrast, electric direct heaters extract only 1 kW of thermal energy from 1 kW of electricity.
Is there automatic defrosting?
Yes, with this full-inverter heat pump, automatic evaporator defrosting also increases efficiency and reduces energy consumption.
Useful
Want to extend the swimming season?
Pool heating with WiFi control and lower consumption – contact us so we can select the right installation.
| Weight | 76 kg |
|---|---|
| Dimensions | 108 × 46 × 75 cm |
| Manufacturer | Hanscraft – Czech Republic |
| Series | Azuro |
| Product type | Pool heat pump |
| Purpose | For heating and cooling pool water |
| Suitable for | Inflatable pools, prefabricated pools |
| Suitable volume | up to about 70 m³ |
| Technology | Full inverter |
| Inverter | yes |
| Power | 17 kW |
| Flow rate | 5.2 m³/h |
| Wi‑Fi control | Yes |
| Mobile app | Aqua Temp |
| Automatic defrost | Yes |
| Cooling mode | Yes |
| Control | Digital control panel |
| Operating mode | Automatic power regulation |
| Highest efficiency with air | 15–26 °C |
| Energy from the environment | up to 83% |
Czech Republic · Exclusive representativeMountfield – family pools from the Czech Republic.
Exclusive representative of the largest European manufacturer — Baseini.NET, for Bulgaria.
per year
The largest European manufacturer
Baseini.NET is the official representative for Bulgaria, Romania and Turkey of the Czech manufacturer Mountfield, the largest producer of family pools in Europe. Twenty years of experience, over 1500 employees, a sales network of 71 company-owned garden hypermarkets in the Czech Republic and Slovakia and a production of 120,000 pools per year are just some of the prerequisites that guarantee the European quality of the products offered.
Two production buildings for the production of swimming pools, water treatment products, solar panels, solar showers, counter-current swim systems. High-quality materials, unique technology and precise workmanship are a guarantee of European quality of the products produced.
Mountfield products in our shop
The pool you can afford!
See the best options to have the pool of your dreams
Unicredit Bulbank
UniCredit Consumer Financing is part of UniCredit Group – the largest banking group in Eastern Europe.
Why choose UniCredit Consumer Financing?
For additional information:
Call 0700 15 600 at the price of a local call for BTC subscribers or www.ucfin.bg
TBI Bank
TBI Bank provides you with a quick and easy opportunity to purchase the desired swimming pools.
7 important reasons to choose TBI Bank:
Do you have any questions?
We are here to answer and assist. Contact us:
Delivery time
- The maximum delivery time for all products is up to 10 working days.
- Most products are in stock and can be received in a matter of days.
Price and free shipping
- The online store automatically calculates the price with the selected courier.
- Free delivery on orders over €150 to a Speedy office, for Bulgaria only.
- Below this threshold, delivery is at the customer’s expense according to the courier’s tariff.
- You can pick up the product in person from the warehouse or office store after prior arrangement.
Full terms and conditions: Delivery terms →
Installation and connection
The heat pump comes fully assembled and ready to use. In order to start it up, you only need to connect it to the pool's filter system.
The inlet and outlet connections suit pipes with a diameter of 50 mm. If the filter system uses pipes with a different diameter (e.g. 32 mm or 38 mm), you need suitable adapters.
In order to get optimal performance, we recommend a filter pump with a minimum flow rate of 8 m³/h that matches the requirements of the heat pump.
Important:
You must also place the heat pump and the electrical outlet at least 3.5 meters from the pool wall.
Additionally, you must protect the electrical installation with residual current protection (RCP) up to 30 mA.
Before installation, make sure that the electrical system is in good condition and read the installation and operating instructions carefully.
