Poolsana 50 mm heat pump connection kit for pool
€149.00 incl. VAT
Ready-made kit for connecting a heat pump to the filtration circuit of a pool with 50 mm pipes – for a distance of up to 5 m.
- 3 ball valves and 2 tees
- 2 elbows 90° and SpaFlex hose 12 m
- Includes PVC adhesive and cleaner
Poolsana 50 mm heat pump connection kit for pool
This 50 mm heat pump kit is a ready-made solution for connecting the heat pump to the existing filtration circuit. It is designed for 50 mm pipework. With it you build a bypass without searching for individual parts.
| Manufacturer | Poolsana |
|---|---|
| Purpose | Connecting a heat pump via a bypass |
| Pipe size | 50 mm |
| Distance to the heat pump | up to 5 m |
| SpaFlex hose | 12 m |
| Ball valves | 3 pcs., 50 mm |
| Material | PVC |
What this heat pump kit includes
- 1 roll of flexible SpaFlex hose, 12 m;
- 3 two-way ball valves 50 mm;
- 2 tees 50 mm;
- 2 elbows 50 mm, 90°;
- 1 PVC cleaner, 125 ml;
- 1 PVC adhesive, 125 g.
The adhesive and cleaner are in sufficient quantity for the joints to be glued.
How the bypass works
The heat pump is connected to the pool through a bypass line. The main line of the filtration circuit stays untouched. The three ball valves let you control how much water passes through the heat pump.
Thanks to the valves, you can adjust the water pressure to the changing outdoor temperature. This helps the heat pump work more efficiently in different seasons.
The tees divert the water from the main line to the heat pump. The elbows help you turn the pipe where needed. With the valves you can isolate the heat pump from the water circuit when you are not using it.
Benefits of the kit
- Everything you need in one box: valves, tees, elbows, hose, adhesive and cleaner.
- Three valves give full control over the water through the heat pump.
- The flexible SpaFlex hose makes routing the connection easier.
- The kit is designed for pipes with a 50 mm cross-section.
Which pools it is suitable for
The kit is designed for a distance of up to 5 m between the heat pump and the filtration circuit. The 12 m hose provides the length needed for the connection. It is suitable for pools with 50 mm piping where the heat pump is connected separately from the main line.
It is convenient, for example, for the Poolsana InverPOWER ULTRA heat pumps, which have a 50 mm water connection.
How it is installed
PVC pipes and fittings are glued together. First clean the bonding areas with the cleaner. Then apply the adhesive and join the parts. Follow the instructions on the packaging and let the joints set properly before running water.
This gives you a strong connection in the filtration circuit. The kit is a convenient choice when you want to install the heat pump quickly and neatly.
Not sure this is your part?
Send us the model of the unit and a photo of the old part. We will check compatibility before you order.
| Manufacturer | Poolsana |
|---|---|
| Purpose | Connecting a heat pump via a bypass |
| Pipe size | 50 mm |
| Distance to the heat pump | up to 5 m |
| SpaFlex hose | 12 m |
| Ball valves | 3 pcs., 50 mm |
| Material | PVC |
Germany, Nuremberg · Exclusive representativePoolsana – pools and equipment from Germany.
German specialist in swimming pools, saunas and accessories, founded in 2005 in Nuremberg.
in Nuremberg
A swimming pool for every home at a reasonable price
Poolsana was founded in 2005 in Nuremberg by a local pool and sauna construction company with many years of experience in the industry. Its goal is to make it possible for every property owner to afford their own pool or sauna.
Poolsana’s technical department checks the compatibility of pumps, sand filters and other components, and the warehouse of over 3000 m² guarantees fast delivery. At Baseini.NET we are the exclusive representative for Bulgaria.
The components in Poolsana kits are selected and tested to work together – no surprises during installation.
Poolsana products in our shop
The pool you can afford!
See the best options to have the pool of your dreams
Unicredit Bulbank
UniCredit Consumer Financing is part of UniCredit Group – the largest banking group in Eastern Europe.
Why choose UniCredit Consumer Financing?
For additional information:
Call 0700 15 600 at the price of a local call for BTC subscribers or www.ucfin.bg
TBI Bank
TBI Bank provides you with a quick and easy opportunity to purchase the desired swimming pools.
7 important reasons to choose TBI Bank:
Do you have any questions?
We are here to answer and assist. Contact us:
Delivery time
- The product is delivered on pre-order, delivery time up to 20 working days.
- We order it specially for you from the manufacturer.
Price and free shipping
- The online store automatically calculates the price with the selected courier.
- Free delivery on orders over €150 to a Speedy office, for Bulgaria only.
- Below this threshold, delivery is at the customer's expense according to the courier's tariff.
- You can pick up the product in person from the warehouse or office store after prior arrangement.
Full terms and conditions: Delivery terms →
Frequently bought together
You may also like…

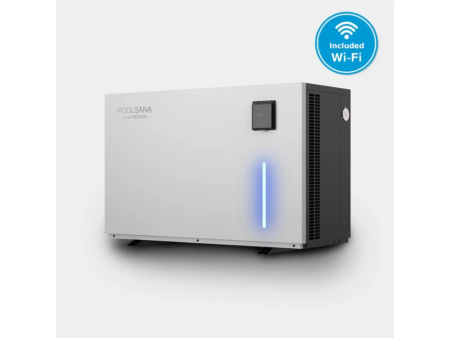

Full inverter heat pump for pool POOLSANA InverPREMIUM 15
