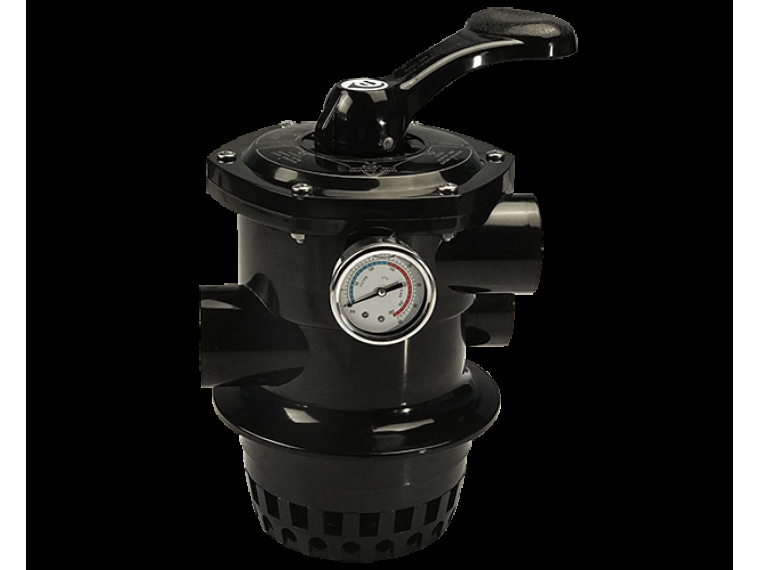

Emaux MPV01 1½″ top-mount six-way valve for Emaux V and P sand filters
€89.00 incl. VAT
Original Emaux MPV01 1½″ six-way valve for top mounting on Emaux V and P series sand filters.
- 6 positions: filter, backwash, rinse, drain, recirculate, closed
- ABS and stainless steel housing
- Working pressure up to 4 bar, flow 17 m³/h
- Valve only – without unions and pressure gauge
Emaux MPV01 1½″ top-mount six-way valve for Emaux V and P sand filters
The Emaux MPV01 six-way valve is an original 1½″ valve for top mounting. It is designed for Emaux V and P series sand filters. With one turn of the handle you choose how the pool filtration works.
| Manufacturer | Emaux |
|---|---|
| Manufacturer code | 88280105 |
| Model | MPV01 |
| Type | Six-way top-mount valve |
| Connection size | 1½″ |
| Fastening | with clamp (sold separately) |
| Maximum working pressure | 4 bar |
| Flow rate | 17 m³/h at 4 bar |
| Maximum water temperature | 50 °C |
| Material | ABS and stainless steel |
| Suitable for | Emaux P350–P700 and V350–V700 filters; ACIS Vipool Top |
| Set contents | valve only, without unions and pressure gauge |
Emaux six-way valve – six functions in one
- Filter – the normal operating mode.
- Backwash – cleans the sand with reversed flow.
- Rinse – after backwashing, it flushes the dirt out of the valve.
- Drain – the water bypasses the filter and goes to the drain. Used for a vacuum cleaner to drain or for lowering the level.
- Recirculate – the water returns to the pool bypassing the filter.
- Closed – stops all flow to the filter and the pool.
Sturdy construction
Emaux valves are made of strong ABS and marine-grade stainless steel. The handle is made of durable plastic. Each valve is factory tested for pressure and tightness. It is also easy to install and service.
Technical data
- Connection size: 1½″.
- Mounting: on top of the filter, with a clamp.
- Maximum working pressure: 4 bar.
- Flow: 17 m³/h at 4 bar.
- Factory test: 7 bar.
- Maximum water temperature: 50 °C.
- Height: 332 mm.
Which filters it is suitable for
The valve is for top mounting on Emaux P and V series sand filters. Emaux dealers list models P350, P400, P450, P500, P650 and P700. They also list V350, V400, V450, V500, V650 and V700. In addition, the valve is compatible with ACIS Vipool Top filters.
The valve is fitted on top of the tank. There it is held by a tightening clamp, which is sold separately. Before ordering, compare the old valve with the photos and dimensions.
What is included
Code 88280105 is the valve only. The unions and the pressure gauge are not included. If your unions are in good condition, you can reuse them. If the old pressure gauge is damaged, order a new one too.
The Emaux six-way valve is a good solution for a cracked housing or worn interior. This way the filter works again with all its functions. In addition, you do not need to replace the whole filter.
Not sure this is your part?
Send us the model of the unit and a photo of the old part. We will check compatibility before you order.
