Foam nozzle with nested tubes – inverted water umbrella – Atlas Pool
Price range: €54.00 through €105.60 incl. VAT
Inverted water umbrella – a brass foam nozzle with nested tubes that creates a voluminous, foamy water shape.
- sizes: 1″ and 2″
- all-brass construction, weight 0.31 and 0.96 kg
- flow 7 or 12 m³/h at 1 m
- made by Atlas Pool
Foam nozzle with nested tubes – inverted water umbrella – Atlas Pool

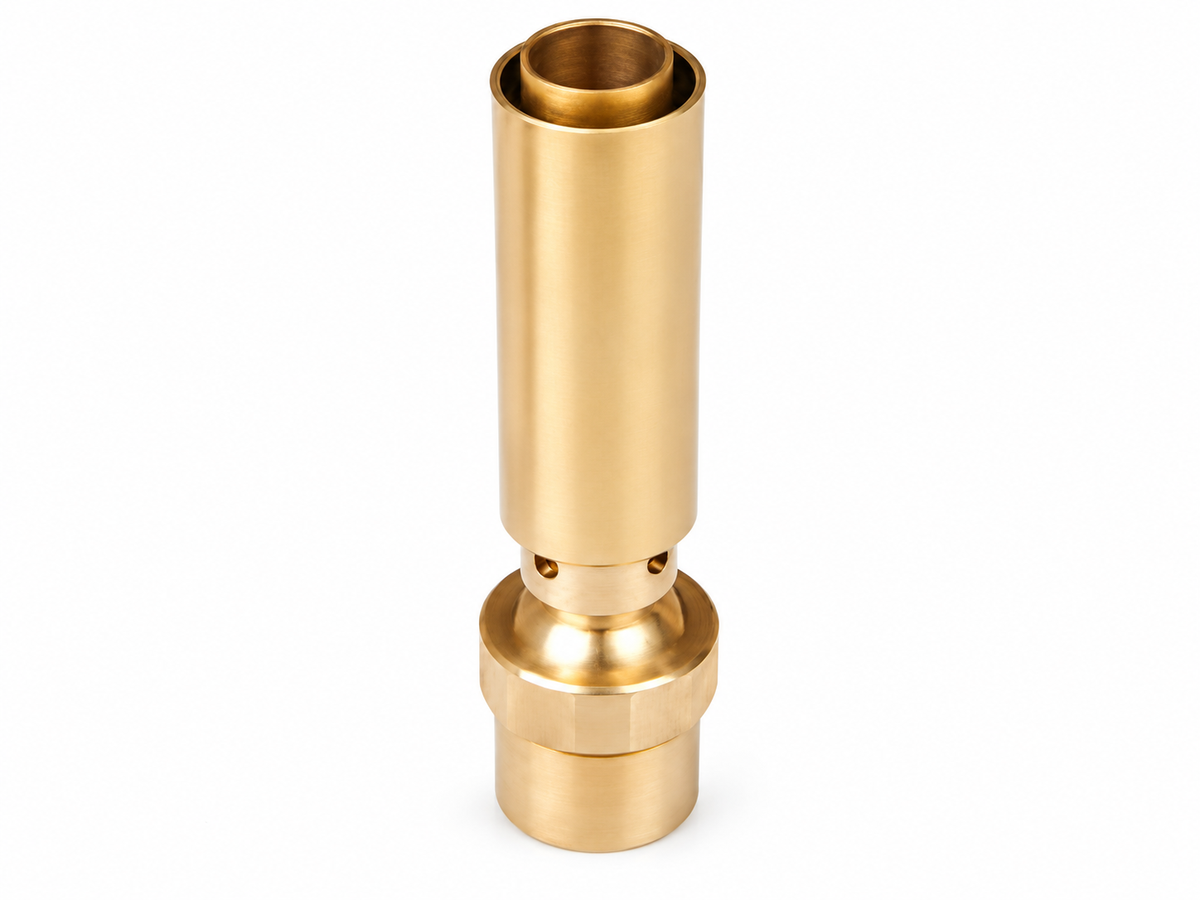

The inverted water umbrella is a brass foam fountain nozzle with tubes nested inside one another. This way the water leaves in a foamy, voluminous shape. Atlas Pool offers it in two sizes – with 1″ and 2″ connection. The nozzle is small, light and easy to install.
| Manufacturer | Atlas Pool |
|---|---|
| Material | brass |
| Jet effect | foamy, voluminous shape (inverted umbrella) |
| Connection | 1" or 2" |
| Weight | 0.31 kg (1″) or 0.96 kg (2″) |
| Flow rate | 7 m³/h (1″) or 12 m³/h (2″) at 1 m |
| Application | decorative fountains |
Inverted water umbrella – how it works
The nested tubes mix the water with air as it leaves. The result is a white, soft foam rather than a smooth jet. The shape resembles an inverted umbrella. The effect is clearly visible even from a distance. The nozzle is suitable for small and medium fountains and for combinations with other jets.
Difference from the other nozzles
The shop already has the Umbrella nozzle, which forms a thin film of water in the shape of an umbrella. Here the effect is different – foamy and voluminous, with nested tubes instead of a film. That is why the two nozzles complement each other well in the same composition.
Dimensions and flow
- 1″ – height 160 mm, outer diameter 35 mm, inner diameter 31 mm, 0.31 kg; flow 7 m³/h at 1 m;
- 2″ – height 215 mm, outer diameter 55 mm, inner diameter 45 mm, 0.96 kg; flow 12 m³/h at 1 m.

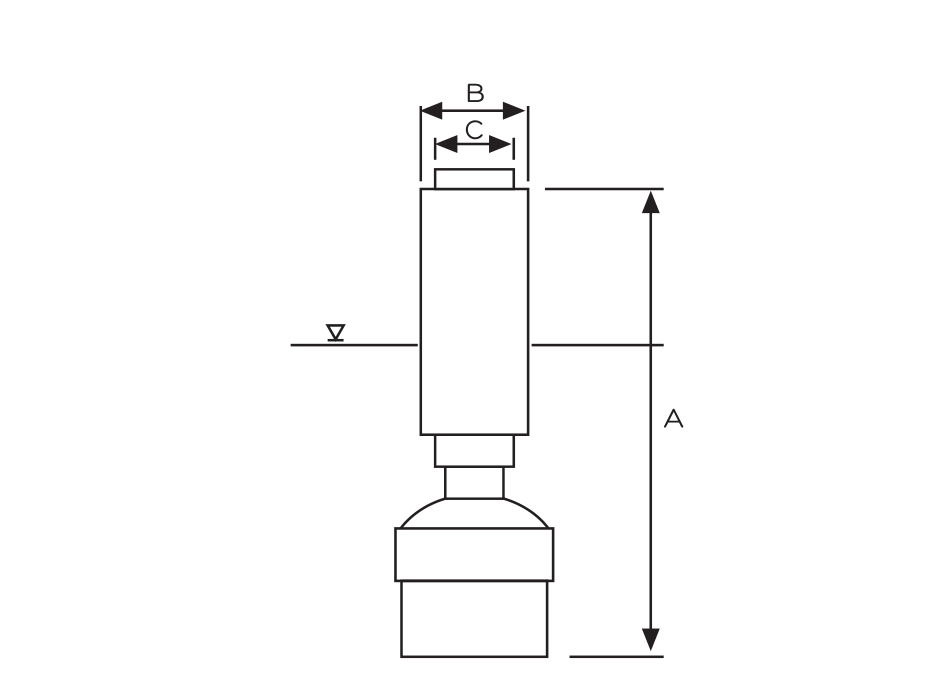

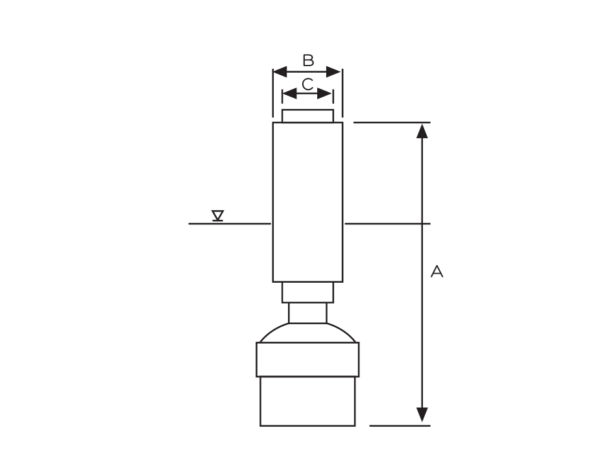

Dimensions A, B and C are as per the manufacturer's diagram. The material is brass.
Installation
Screw the nozzle onto the fountain pipe. First flush the pipes so that the nested tubes do not become blocked. Use sealant on the thread. The nozzle must be vertical, and the water level must comply with the manufacturer's diagram. Choose a pump according to the stated flow and adjust the water supply.
What fountains it suits
Brass withstands water well. The nozzle is suitable for garden fountains, decorative ponds and bodies of water. The 1″ size fits smaller fountains, while 2″ gives a more generous effect for larger water features. The flow at 1 m is a handy guide for choosing a pump. Before installation, check the thread of the pipe so that it matches the connection of the nozzle. This way you avoid unnecessary adapters and pressure losses.
Order the nozzle at baseini.net and get help choosing the size.
Not sure this is your part?
Send us the model of the unit and a photo of the old part. We will check compatibility before you order.
| Weight | N/A |
|---|---|
| Manufacturer | Atlas Pool |
| Material | brass |
| Jet effect | foamy, voluminous shape (inverted umbrella) |
| Weight | 0.31 kg (1″) or 0.96 kg (2″) |
| Flow rate | 7 m³/h (1″) or 12 m³/h (2″) at 1 m |
| Application | decorative fountains |
| Atlas Pool catalogue no. | SUS063, SUS064 |
| Connection | 1″, 2″ |
